Xilinx XC6SLX16 FPGA development board

Xilinx XC6SLX16 FPGA Board

Xilinx XC6SLX16 FPGA CORE Development Board

Category: Development Board

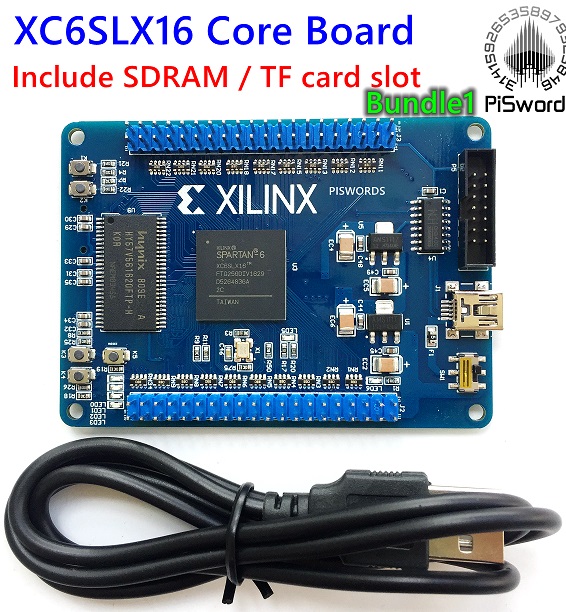

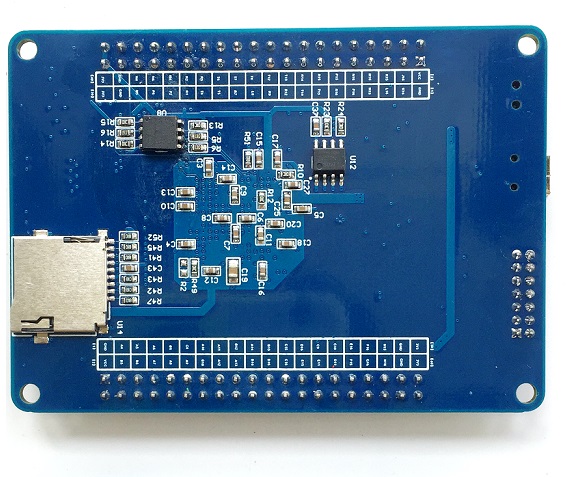

Xilinx XC6SLX16 FPGA development board Xilinx XC6SLX16 FPGA development board with sdram

Specification::

Onboard XC6SLX16-FTG256 chip and high-speed SDRAM, can be adapted to external ultra-high-speed ADC for various types of analog signal acquisition, processing and analysis.
Main chip: XILINX FPGA Spartan6 XC6SLX16-FTG256, 256 pin, BGA package. The chip with a wealth of block RAM resources, the number of logical units of the chip is 14,579.
FPGA external clock frequency: 50MHz.
The development board with Flash chip, 2MB of storage capacity.
The development board with 32MB SDRAM chip
The development board leads to 2 * 60p, 2.54mm pitch pin, can be used to connect peripherals.
Onboard 2 user keys, 4 LEDs.
Onboard 1 * 6pin 2.54mm JTAG interface, support Xilinx USB Platform Cable download debugger.
USB power supply.
Size: 7.8cm * 5.4cm
Package included:
1 * XC6SLX16 SDRAM development board

SCH&Sample Code
