Xilinx XC6SLX25 FPGA development board

Xilinx XC6SLX25 FPGA Board

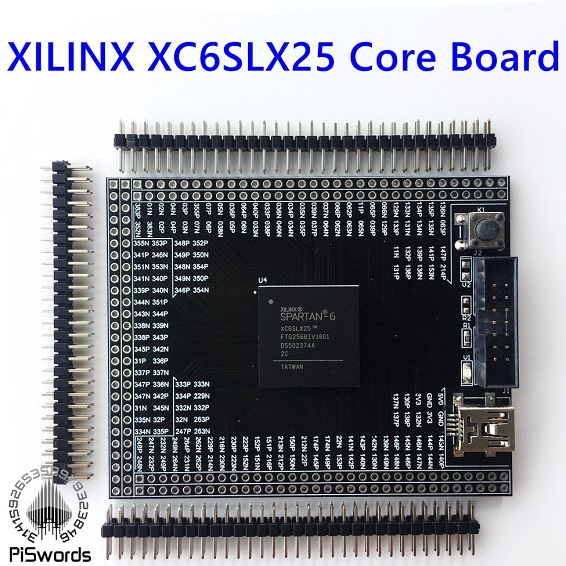

Xilinx XC6SLX25 FPGA CORE Development Board

Category: Development Board
Xilinx XC6SLX25 FPGA development board Xilinx XC6SLX25 FPGA development board with sdram

Specification::

Development board size: 55mm*69mm
Power supply mode: 5V/500mA pin header / mini USB socket
PCB stack: six layers
Development board status: finished product / welding debugging good shipping
Development board circuit:
1. Complete power system, only need to input 5V externally to work
2.5070 package 50MHz active crystal oscillator, can be set by PLL itself
Development board external interface:
1. 5V/500mA miniUSB socket
2. Anti-reverse insertion 14P/2.0mm standard JATG socket
3. 6 rows of 32*2.0mm standard pitch pins (lead all IO ports of the chip).
Package included:
1 * XC6SLX25 development board

SCH&TEST Code
